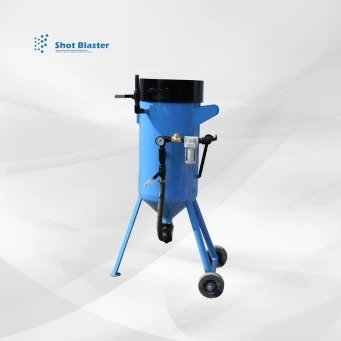

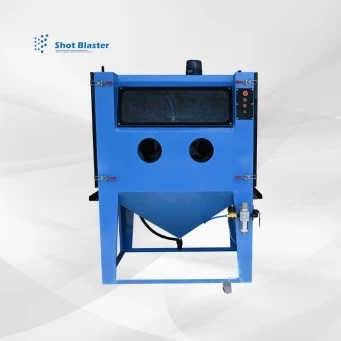

Shot Blasting Machine in Bahrain

Shot Blasting may be a surface treatment process using high-velocity steel abrasive. Shot blasting is a method through which it's possible to get excellent cleaning and surface preparation for secondary finishing operations.

Shot Blasting Machine in Bahrain

REQUEST CALLBACK

Product Details:

Machine Type	Shot Blasting Machine
Automatic Grade	Automatic, Semi-Automatic
Weight	1000 kg
Volume	284 liters
Compressed Air Requirement	250 cfm
Height	1610 mm
Orifice	10 mm
Abrasive Size	12-80 mm

Shot Blasting Machine

Shot blasting concentrates abrasive particles at high speed (65-110 m/second) during a controlled manner at the material thereby removing surface contaminates because of the abrasive impact. Initially, the shot blasting process used compressed air for propelling the steel shot. This method remains in use today for cleaning metal frames and welded elements. Shot blast composition lines use both manual and automatic systems, became potential with the introduction of centrifugal wheel blast machines. When it involves finishing and cleaning operations, the shot blasting surface treatment technique could be a highly effective option. The high-speed controlled shot blast generates an abrasive impact that removes surface contaminants, making it an efficient process for cleaning iron, steel, forgings, machine parts, fixtures, etc.

Features of Shot Blasting Machine

High efficiency: special impeller structure, blasting efficiency reaches 16-19 kg/min.
Protective liner and sealing: the top cover has cast iron and wearable rubber two layers of strength and sealing.
Low noise blast wheel bottom has to cushion rubber, which can reduce vibration.
The runner wheel uses 40 Cr metal carburized and quenched. After processing, a runner needs to be under balance detection.
To keep precision and good balance when it rotates at high speed, all key machining parts are done by the CNC center.
At the same time, you can also check the abrasion status of the impeller and control.
The material of blades, control cage, the impeller is a high chrome alloy, which has a long service life.
The weight difference between each piece of the blade is less than 8 grams, which keeps the wheel has a good balance performance.
It uses two dish impeller wheel, short and high throw ability.

Materials used in Shot Blasting Machine

Shot Blasting Machine chamber uses 8mm thickness steel platters and the protection liner for direct.
The blasted area is 10mm thickness SPMn13 steel floorings.
The front and back chamber uses 5mm diameter steel plates, near the blast chamber area.
We install a 65Mn steel plate for protective purposes.
Bucket elevator and separator use 4mm thickness steel plates.
Roller uses a diameter of 121mm seamless steel pipe, a thickness of 6mm.
Metal ducting for dust collector,2mm thick steel plates.

Industrial Uses of Shot Blasting Machine

Aerospace Industry.
Automotive Industry.
Steel shots/grit Fabrication.
Aluminum oxide Industry.
Medical.
Military.

We are the largest manufacturer of portable sand blasting machine, a Portable shot blasting machine at the Best Price. Our Prices are economical and we provide a 1-year warranty for our sand blasting cabinet, sand blasting machine, shot blasting cabinet, nozzles, shot blasting room, themal spray gun, arc spray gun & abrasive media.

FAQ's

Q. What is the process of shot blasting?

Ans.

Shot blasting is a technique used to clean, peen, or clean metal. Shot blasting is utilized in pretty much every industry that utilizations metal, including development, foundry, aviation, car, shipbuilding, rail, and so on There are two advances utilized in shot blasting:

Wheel blasting
Air blasting

Q. What is the purpose of shot blasting?

Ans.

The motivation behind Shot blasting is to clean the surface and clean or reinforce the metal. It is utilized in pretty much every industry that utilizations metal, for example, Construction organizations, foundry, shipbuilding, railways, aerospace, a car organization, thus numerous different businesses.

Q. How Many types of Shot Blasting?

Ans.

There are two types of shot blasting:-

Grit blasting-In these kinds of shot blasting, there is a molecule size sand measure called sandblasting preparing. Sand is fundamentally used to dispense with unfamiliar stores, so the clean surface sandblasting surface treatment is to eliminate the paint or add surface. Then, Silica particles are additionally guided to the surface utilizing a compressed air gun.
Abrasive blasting-This cycle is utilized to execute the tallness of the wear and tear. Typically, abrasive blasting is utilized in a hard metal surface to clean and arrive at an exceptionally high pressing factor. In the interim, it is utilized very like a little steel ball, broken glass, and so forth

Q. What is shot peening?

Ans.

Shot peening is a cold work measure used to complete metal parts to forestall weariness and stress consumption disappointments and draw out item life for the part. Shot peening is the most practical and powerful technique for creating and making surface lingering compressive anxieties to expand the item life of treated metal parts. In shot peening, a little circular shot assaults the outside of the part to be done.

Q. What are the useful effects of Shot Blasting Machines’ Blasting?

Ans.

Shot blasting machines' blasting advantages are as per the following:

It gives higher creation rates, more extensive grating choice, and better impact design exactness.
The completed surface acquired is totally liberated from substance stores, scales, and residue content.
Shot blasting encourages the arrangement of a perpetual connection between the defensive coat (zinc, paint, or epoxy) and the shot impacted surface. It likewise assists with distinguishing surface blames or imperfections.
It dispenses with the use of non-ecofriendly and cruel synthetic substances.
Builds life span and sturdiness of defensive surface coats as it holds fast better to the shot impact cleaned and without scale surface.
