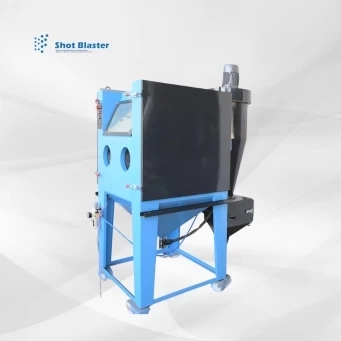

Sand Blasting Cabinet

Introduction Of Sand Blasting Cabinet

Sand blasting cabinet works on the direct pressure blasting principle, which means that pressure blasting cabinet assembles a heightened abrasive velocity, resulting in more instantaneous job cleaning. A pressure vessel is instantly mounted underneath cabinet's hopper & features an automated abrasive replenishing system. As a typical feature, of a tubular fabric bag dust collector additionally, an extensive filter area is mounted to cabinet to ensure maximum dust collection efficiency. A manual shaker is even included for bag shaking. It is ideal for rapid cleaning, extracting heavy rust & erosion with coarse abrasive, & etching exterior mandated for thermal spaying. Blasting pressure may be altered from 30-90 psig. Relying on the purpose, nearly any coarse & medium-sized abrasive could be employed.

Sand blasting cabinets are simulated accompanied by 10 gauge steel construction. They include an entire opening and hinged doors on both sides of cabinet. Doors include lips certain to prevent spilling abrasive out of cabinet. Heightened wear areas inside front & rear of cabinets are lined with rubber sheets. Work exterior is an easily removable piece of dense perforated steel sheet. Bottom of cabinet is hopper-shaped to collect & recycle abrasive.

Cabinets include glove ports accompanied by arm-length neoprene gloves. Hand portions are cloth-lined for machinist comfort. Vision windows are safeness glass, sealed in a rubber gasket. A built-in division yields recyclable abrasive media to hopper for recycling & passes broken-down abrasive, dust & garbage out of cabinet to dust collector. Dust collector consists of a bag-type filter & exhaust blower in a soldered steel enclosure.

Types of Sand Blasting Cabinet

Suction Blasting Cabinet

Suction blasting cabinet is furthermore understood while a siphon blasting cabinet. A suction cabinet operates by drawing material into an air stream & sending it to gun. These cabinets are suitable for a wide spectrum of utilization & are money-saving in terms of air usage.

These cabinets are equipped along suction blast guns. A high-speed combination of air & abrasive is mandated by gun to release erosion, coatings, carbon build-up, & additional impurities. A suction blast gun's blast stream could generate a consistent texture & an etched finish, improving bonding strength for coating applications.

High-performance blast gun delivers a relaxed grip for user & authorizes for fine control over blast pattern. Gun maintains air jet & blast nozzle properly aligned, maximizing blast efficiency & decreasing gun-body wear. A knurled nut at a gun outlet permits machinists to switch nozzles without requirement of tools. Gun takes an assortment of nozzles & extensions, permitting machinist to determine optimal nozzle size & arrangement for the application. A gun is compatible along numerous recyclable blast media, including glass beads, ceramics, aluminum oxide, & certain sizes of steel grit & shot, allowing you to choose the best media for your utilization.

Pressure Blasting Cabinets

Pressure blasting cabinet works on direct pressure principle. Pressure blasting cabinets utilize a pressure vessel to thrust blast media via a single abrasive hose & out-blast nozzle. A simple explanation is certain pressure blast systems decrease abrasive media into an air hose & pneumatically move it out via an air jet. These two pieces are commonly directed to as an abrasive hose & a blast nozzle, however, caused by direct pressure delivery design, they are actually an air hose & air jet.

Pressure blasting techniques thicken abrasive, resulting in a larger hotspot on exterior. By reason pressure blast system operates pneumatics to push abrasive media, so it is feasible to cleanse blind holes & pockets.

At any pressure, all pressure blasting cabinets quadruple bits velocity compared to vacuum injection methods. To avoid surpassing maximum abrasive influence velocity during processing utilizing a pressure blast system, blasting pressure must be reduced by 50% above vacuum injection. Due to focused pattern, pressure blast system generates higher frictional warmness on a component. Pressure blast models may do functions certain vacuum injections can't, & the applications described beneath are examples of why pressure blast is a more suitable alternative.

The more significant blast media accelerations authorize pressure systems to influence clean items up to 4 times quicker than suction blast machines. pressure blast cabinets give better exact management of cleaning & exterior modification due to their changeable pressure levels.

Direct pressure blasting equipment is competent in lifting & dragging weighty abrasive media for instance steel shot, & steel grit. Suction sand blasters perform additionally thick media. Enhancing blast medium mass doubles consequence energy. More rotund abrasive media is more efficacious for cleaning & profiling than more delicate, lower-density, & smaller media.

Wet Blasting Cabinets

Water could be utilized instead of air to push abrasive media. Wet abrasive blasting, even comprehended while wet blasting cabinet may minimize abrasive blasting dust by more than 90%, whichever is usable for stripping & cleansing a component containing weighty metals & dangerous compounds. While some providers call wet blasters dustless blast equipment, no abrasive blasting technology eliminates dust.

Wet blasting could preserve components cooler than dry blasting, decreasing bending and distortion in narrow portions. If dust formed by blasting is combustible, for instance, aluminum & titanium dust, wet blasting is preferable since stationary departures & ignition are diminished.

Wet blasting could utilize until 50% less blast material than dry blasting. Wet blasting offers extensive cleaning and additionally little & no embedding of abrasive media. Wet blasting machine could utilize closed-loop media recyclers, oil separators, demisters, & filtering systems. Dust is turned into clean, expendable sludge waste.

Sand Blasting Cabinet Features

• Wearable elements are ceramic coated for long service life like blast guns, vibrator balls, etc.
• A boron carbide nozzle is incorporated that has three times service life as compared to a tungsten carbide nozzle.
• Easy fitments of accessories like vision window, nozzles, hoses etc. whenever required at the site.
• High luminous intensity for good illumination also appropriate ventilation for clear visibility while blasting.
• The ergonomic cabinet is scheduled to assemble machinist relaxed while working.
• Doors are delivered along a cam lock technique & single lever which properly seal the door.
• A flexible, antistatic & lightweight hose has been utilized for long service life.
• The noise level of fan is kept below 80 dBA at operator's position.

Sand Blasting Cabinet Supplier

We are the leading sand blasting cabinet manufacturer in India and also sand blasting cabinet supplier all over the world. We offer all types of sand blasting cabinets such as wet sand blasting cabinets, suction sand blasting cabinets, pressure sand blasting cabinets and also provide dustless blasting machine, abrasive blasting machine, grit blasting machine, shot blasting machine, automatic sand blasting machine, thermal spray gun, HVOF spray gun, abrasive media, and more.
